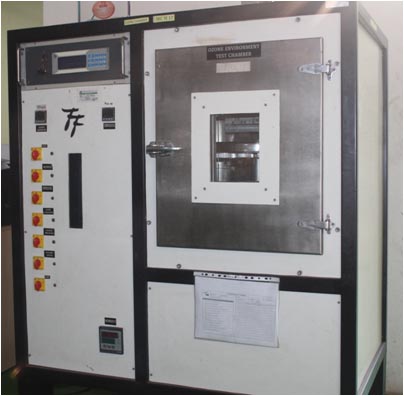

OZONE TEST

Key Features

• Adjustable strain 5%, 10%, 15%, 20%, 25%, 40%&60%
• Operating frequency 0.5 HZ
• Operating range ambient +5° to + 70°C.
• Operational range measured in pphm 25 to 200.
• Ozone generation through Corona discharge.
• Dimensions 500 x 500 x 600 (150L).
• Ozonised Air Flow 50-300L / min.
• Maximum of 2 air changes / min.
• Internal circulation fan to ASTM D 1149.(2 Feet /s)
• Complete software control of Ozone Test sequence e
• Customised reporting of test results as per ISO : 1431-1/2
• Ozone recovery after sample insertion within 10 minutes.
• Ozone Measurement using UV Absorption analyser
• Test Chamber Illumination.
• Closed loop circulation
