Shaker make -Pacific dynamics || Model/Range-PDS360 || SI.NO-7R48725
Specification
- Shaker Force range
- Sine and random vibration
- 3500 Kgf
- Mechanical shock test
- 7000 Kgf
- Frequency range
- 5 to 2000 Hz
- Max Displacment (pk-pk)
- 50 mm
- Max velocity
- 1.8 m/ sec
- Max Accleration
- 100 g

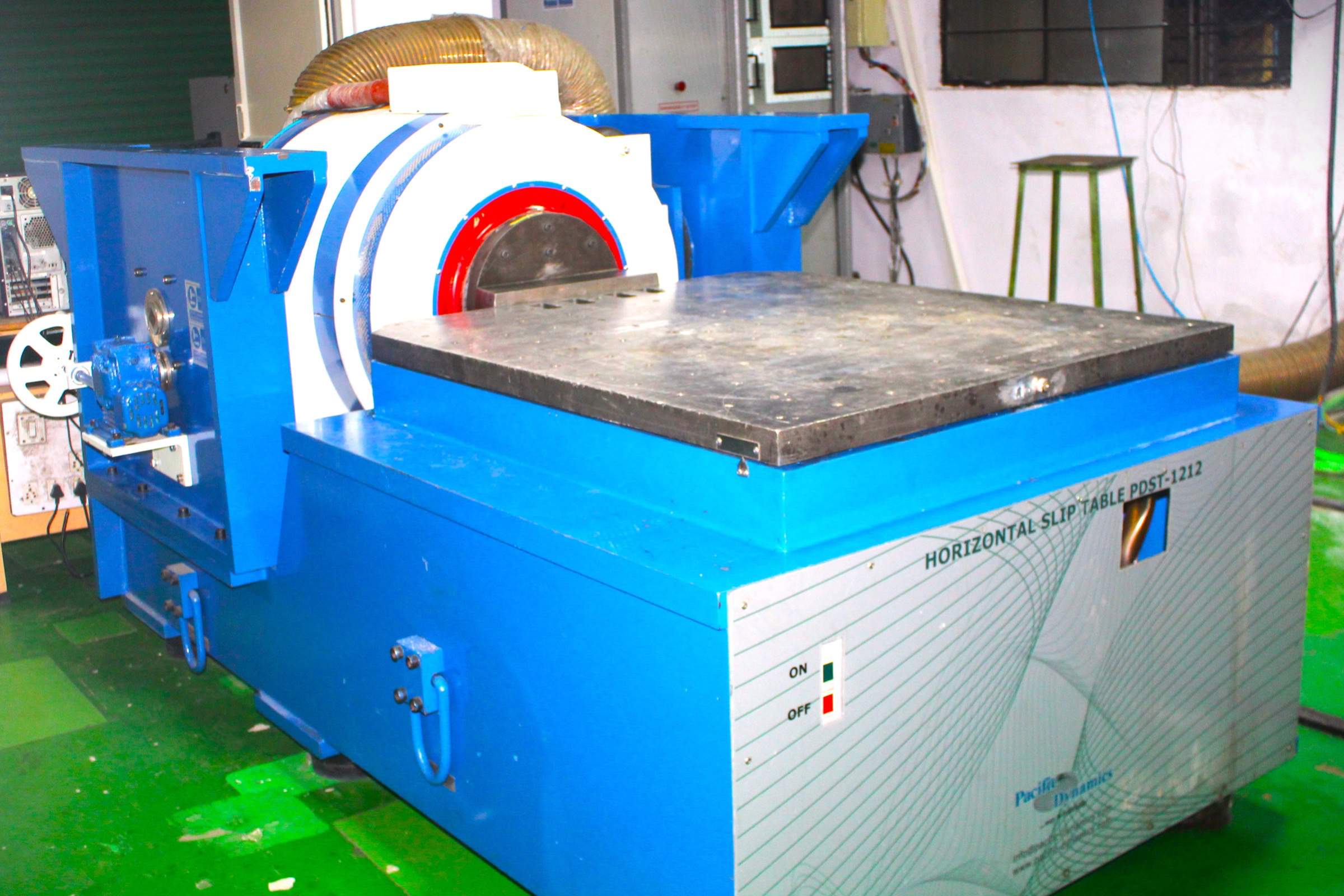

Shaker Dimensions
- Sliptable
- 1000*1000(L*W) in mm
- For insert M10*1.5
- Deep 25 mm
- Matrix
- 100*100.
- Shaker armature
- Dia 360 mm
- Armature
- PCD 300 mm
- For insert M10*1.5
- Deep 25 mm
Types of test
- Sinusoidal vibration(Sine sweep & Dwell test)
- Random vibration
- Sine on Random vibration
- Random on Random vibration
- Sine and Random on Random
Note:
Above mentioned shaker range is considering 100% load,for testing consider 80% load only for safety purpose.
Specification
- Capacity
- 1100 kgf
- Max. g
- 100g
- Head Expander
- 1000 mm
- Slip table
- 600 mm
- Displacement
- 51 mm
- Axis
- 3 axis
- Frequency
- 3000 Hz
Key Features
- Sine, Random, Shock, SOR, ROR in all 3 axis
- Max. 100g, Displacement 50 mm pk - pk
- Generated force for Shock test is 1200 kgf.
- Various custom profiles can be programmed.
- Head expander having size of 1.5 metre with Vertical load support
- Slip table having the size of 1000mm for x & y axis test.
- Resonance tracking can be done for the entire frequency range
Specification
- Capacity
- 600 kgf
- Max. g
- 100g
- Head Expander
- 1000 mm
- Displacement
- 51 mm
- Frequency
- 5 to 3000 Hz
Key Features
- Sine, Random, Shock, SOR, ROR in Z axis
- Max. 100g, Displacement 51mm
- Generated force for Shock test is 2200 kgf.
- Various custom profiles can be programmed
- Head expander having size of 1 mtr
- Resonance tracking can be done for the entire frequency range.
100kgf Shaker for vibration noise testing
Specification
- Capacity
- 100 kgf
- Max. g
- 10g
- Displacement
- 51 mm
- Frequency
- 5 to 3000 Hz
Key Features
- Background noise can go as low as 30 dB.
- Measured noise can be exported to Excel file also the saved file can be played back as video
- FFT and other statistical analysis can be done, various math functions can be added for various analysis as well.
- The system can be triggered by various means, like external pulse, high and low level values etc
- Dewetran 8 Channel Universal input DAQ from Austria , 8 AI, 8 Counter, 24 DI, 2 CAN Bus ports, 24Bit, 204.8Ks / s
- 100 Kgf shaker with Sine, Random and Shock test capability
- The shaker can be placed in Acoustic enclosure and can be used to measure noise during vibrate environment
- 3 axis test can be done by tilting the armature
