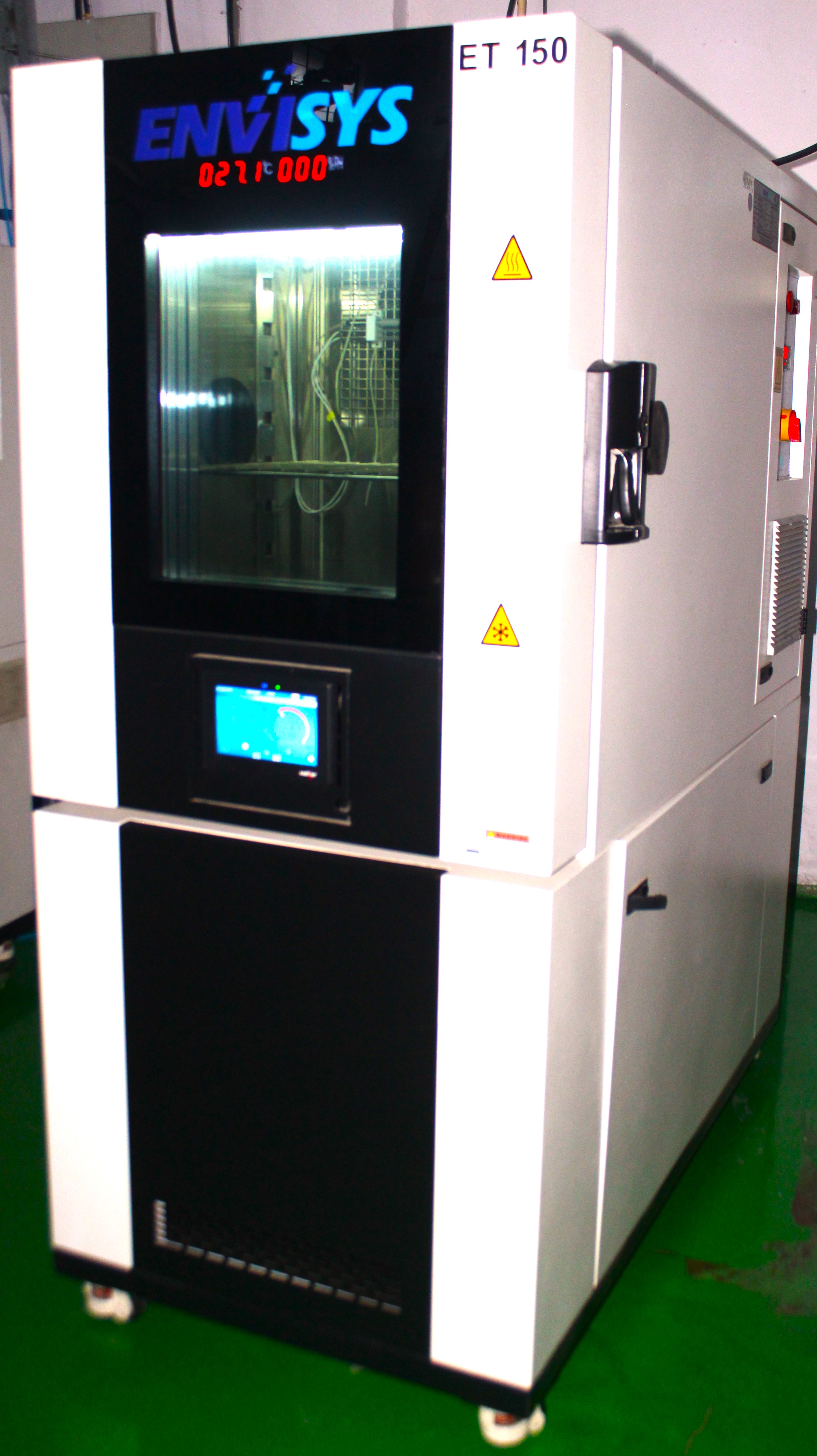

Chamber make-ENVISYS TECHNOLOGIES PVT LTD || Chamber type-Temperature with humidity chamber || Model/Range-ET150-70H-5K ||SI.NO-ET/21-22/103
Specification
Temperature with Humidity chamber
- Temperature:
- T min
- 70°C to T max 180°C
- Humidity
- 10 to 95%RH
- Chamber dimension:
- 550*390*700(L*W*H)
- Ramp rate
- 3°C /min
Types of test
- Constant Dry heat temp
- High temperature cyclic
- Cold temp test
- Temp with humidity test
- Thermal cycling
- Damp heat cyclic
Note:
Above mentioned chamber range is considering 100% load,for testing consider 90% of range only for safety purpose.

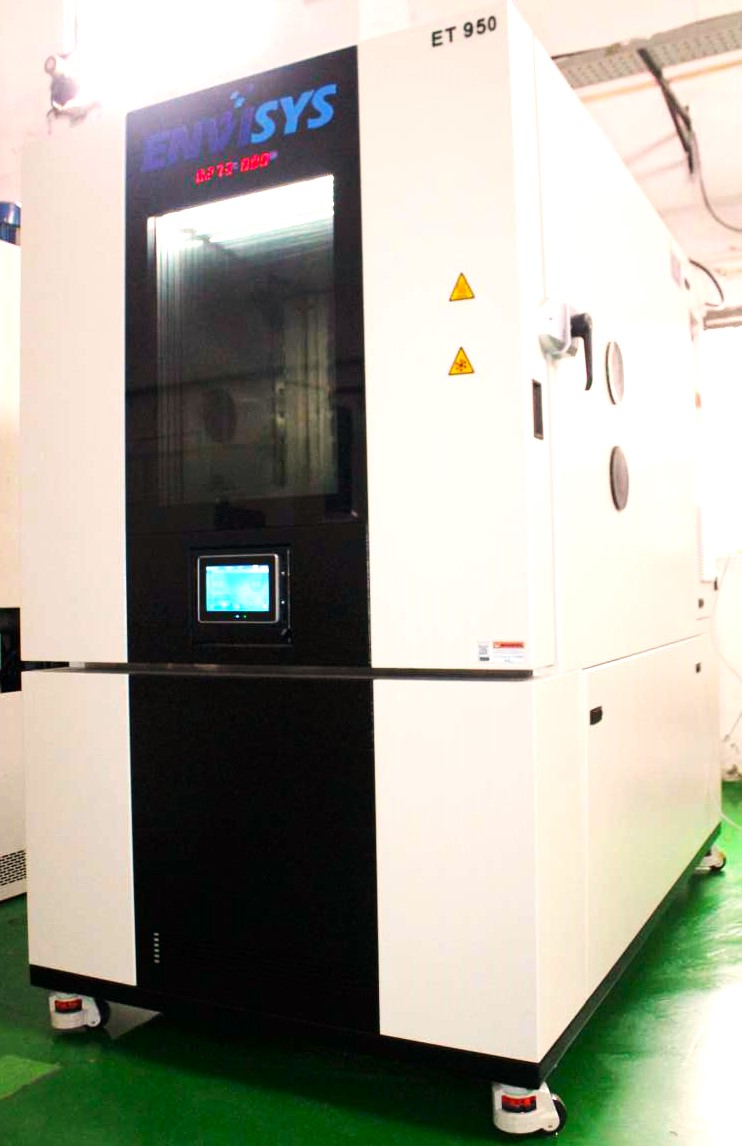

Chamber make-ENVISYS TECHNOLOGIES PVT LTD || Model/Range-ET950-70H-5K || SI.NO-ET/22-23/042
Specification
Temperature with Humidity chamber
- Temperature:
- T min
- 70°C to T max 180°C
- Humidity
- 10 to 98%RH
- Chamber dimension:
- 950*980*950(L*W*H)
- Ramp rate
- 3°C /min
Types of test
- Constant Dry heat temp
- High temperature cyclic
- Cold temp test
- Temp with humidity test
- Thermal cycling
- Damp heat cyclic
Note:
Above mentioned chamber range is considering 100% load, for testing consider 90% of range only for safety purpose.

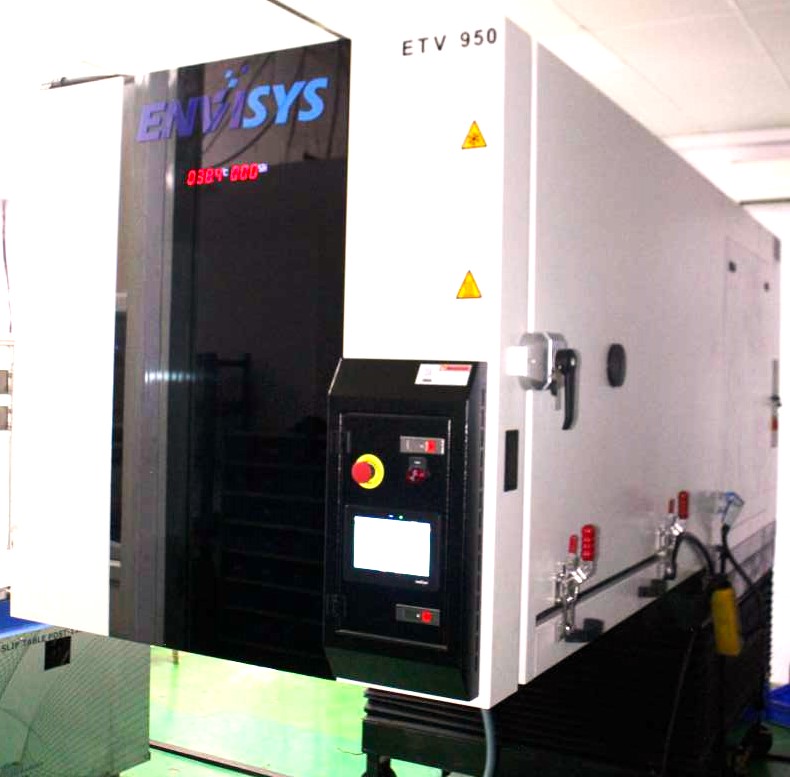

Chamber make-ENVISYS TECHNOLOGIES PVT LTD || Model/Range-ETV950-70H-10K || SI.NO-ET/21-22/102
Specification
Combined vibration with temperature with humidity chamber.
- Temperature:
- T min
- 70°C to T max 180°C
- Humidity
- 10 to 95%RH
- Chamber dimension:
- 1000*950*1000mm(L*W*H)
- Ramp rate
- 7°C /min
Types of test
- Constant Dry heat temp
- High temperature cyclic
- Cold temp test
- Temp with humidity test
- Thermal cycling
- Damp heat cyclic
- Temperature with vibration tests
Note:
Above mentioned chamber range is considering 100% load,for testing consider 90% of range only for safety purpose.
Specification
- Dim
- 520*310*350(L*W*H)
- Temp
- -40°C to +180°C
- Ramp rate
- 1°C /min
- Humidity
- 98%
Key Features
- Rate of Cooling & Heating 2°C /min
- Temperature stability within +/- 1 ° C
- External power can be applied or measured to DUT
- Powerful Eurotherm controller unlimited steps can be programmed.
- Can be monitored through and controlled through online
- Auto start after power interruption
- Safety cutoff limit for temperature settings, ensures, even if main controller malfunction, still DUT will be safe
Specification
- Dim
- 1200*1200*1200(L*W*H)
- Temp
- -40°C to +180°C
- Ramp rate
- 5°C /min
- Humidity
- 98%
Key Features
- Rate of Cooling & Heating 2°C /min
- Temperature stability within +/- 1 ° C
- External power can be applied or measured to DUT
- Powerful Eurotherm controller unlimited steps can be programmed.
- Can be monitored through and controlled through online
- Auto start after power interruption
- Safety cutoff limit for temperature settings, ensures, even if main controller malfunction, still DUT will be safe
Specification
- Dim
- 1200*1600*1200(L*W*H)
- Temp
- -40°C to +180°C
- Ramp rate
- 5°C /min
- Humidity
- 98%
Key Features
- Rate of Cooling & Heating 2°C /min
- Temperature stability within +/- 1 ° C
- External power can be applied or measured to DUT
- Powerful Eurotherm controller unlimited steps can be programmed.
- Can be monitored through and controlled through online
- Auto start after power interruption
- Safety cutoff limit for temperature settings, ensures, even if main controller malfunction, still DUT will be safe
