INTEGRATED VIBRO TEMP TESTING

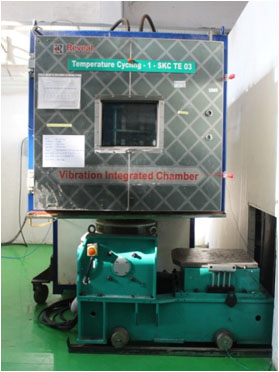

Vibtration shaker integrated with temperature chamber

Key Features

  • -70 to +200 ° C , 98% RH
  • Useful Inner space 1200 * 1200 *1200 mm
  • Ramp rate 5 ° C / min
  • Temperature stability within +/- 1 ° C
  • External power can be applied or measured to DUT
  • Powerful Eurotherm controller unlimited steps can be programmed.
  • Can be monitored through and controlled through online
  • Auto start after power interruption
  • Safety cutoff limit for temperature settings, ensures, even if main controller malfunction, still DUT will be safe

Specfications of Shaker

  • Capacity – 1100 Kgf
  • Max. g – 100g
  • Head Expander – 1000 mm
  • Slip table – 600 mm
  • Displacement – 51 mm
  • Axis – 3 axis
  • Frequency – 5 to 3000 Hz

Key Features of Shaker

  • Sine, Random, Shock, SOR, ROR in all 3 axis
  • Vibration testing inside Environmental chamber. ( -40 to +180°c , RH 98%)
  • Max. 100g, Displacement 51mm
  • Generated force for Shock test is 2200 kgf.
  • Various custom profiles can be programmed.
  • Head expander having size of 1 mtr
  • Slip table having the size of 600mm for x & y axis test.
  • Resonance tracking can be done for the entire frequency range

Vibtration shaker integrated with temperature chamber

Key Features

  • -40°C to +180°C , 95% RH
  • Useful Inner space 1200 * 1600 *1200 mm
  • Rate of Cooling & Heating 2°C /min
  • External power can be applied or measured to DUT
  • Powerful Eurotherm controller unlimited steps can be programmed.
  • Can be monitored through and controlled through online
  • Auto start after power interruption
  • Safety cutoff limit for temperature settings, ensures, even if main controller malfunction, still DUT will be safe

Specfications of Shaker

  • Capacity – 3500 Kgf
  • Max. g – 100g
  • Head Expander – 1500 mm
  • Slip table – 1000 mm
  • Displacement – 50 mm
  • Axis – 3 axis
  • Frequency – 5 to 3000 Hz

Key Features of Shaker

  • Sine, Random, Shock, SOR, ROR in all 3 axis
  • Max. 100g, Displacement 50 mm pk - pk
  • Generated force for Shock test is 7000 kgf.
  • Various custom profiles can be programmed.
  • Head expander having size of 1.5 metre with Vertical load support
  • Slip table having the size of 1000mm for x & y axis test.
  • Resonance tracking can be done for the entire frequency range
